Introduction

In the world of CNC machining, precision is everything. Whether you're performing a high-tolerance turning job or a high-speed production run, CNC turret sleeves (or bushings) play a vital role in toolholding accuracy. But what ensures that these small components consistently deliver big results?

Industry standards:

Following established global standards for turret sleeves ensures interchangeability, durability, and machining performance—regardless of machine type or application.

In this blog, we’ll give you a complete overview of the key standards and tolerances for turret sleeves, what they mean, and why they matter to your operations.

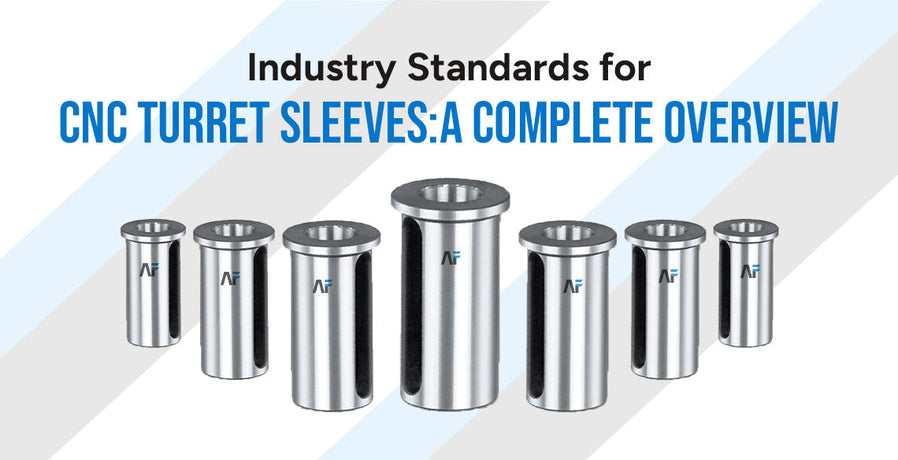

What Are CNC Turret Sleeves?

Turret sleeves are precision adapters used in CNC turning centers and lathes. They fit inside the turret or toolholder and securely hold smaller-diameter cutting tools, such as boring bars, drills, or taps.

They:

• Reduce tool vibration


• Improve tool alignment


• Allow quick tool changes


• Increase machining accuracy


But to do all that consistently, they must be manufactured to strict standards.

1. Tolerance Class – H7

One of the most critical aspects of turret sleeves is the tolerance class. Most high-quality sleeves, including those from Accu-Fix, are manufactured to H7 tolerance.

🔍 What is H7?

• H7 is an ISO system of limits and fits.


• It refers to a specific dimensional accuracy, ensuring the internal bore of the sleeve fits precisely with the tool shank.


• Common H7 tolerance for a 20 mm bore: +0.000 mm / +0.021 mm


This tight tolerance ensures:

• Minimal play between the tool and sleeve


• Reduced tool runout


• Better surface finish during machining


2. Material Standards

Turret sleeves should be made using high-grade alloy steel or hardened spring steel to withstand the high pressure and temperature of CNC environments.

At Accu-Fix, we use:

• Hardened steel (up to 60 HRC)


• Corrosion-resistant finishes


• Heat-treated materials for long life and performance


3. Surface Finish Standards

The internal bore of the sleeve must have a smooth surface finish to reduce friction and allow easy insertion/removal of tools.

• Recommended surface roughness: Ra ≤ 0.8 μm


A smoother finish ensures:

• No scratching of tool shanks


• Better clamping stability


• Easier cleaning and maintenance


4. Length and Concentricity Standards

Length and concentricity directly impact how your tool performs.

• Standard Lengths: Usually between 60 mm to 120 mm, depending on turret and tool sizes.


• Concentricity Tolerance: ≤ 0.01 mm for accurate tool alignment


Accu-Fix sleeves are built with excellent concentricity to reduce radial runout, which is crucial for high-speed and precision jobs.

5. Coolant Compatibility (Slotted/Through-Type Sleeves)

For machines using coolant-through tools, turret sleeves must conform to coolant flow standards.

• Slotted or split sleeves allow coolant to pass through


• Designed with pressure-resistance and flow optimization


• Important for thermal control and tool life


Global Standards Commonly Followed:

Adhering to turret sleeve standards ensures:

• Interchangeability between tools and machines


• Reduced errors during machining


• Consistency across operators and shifts


• Lower tool wear and downtime


• Greater safety and reliability



Accu-Fix Precision Tools – Setting the Standard

All our turret sleeves are:

• Manufactured to H7 tolerance


• Made from heat-treated, hardened materials


• Finished with corrosion-resistant coatings


• Inspected for concentricity and fit


• Compatible with global CNC standards

Whether you're machining mild steel, aluminum, or exotic alloys, our sleeves help you cut with confidence.

Don’t let poor-quality bushings slow you down. At Accu-Fix, we’re committed to delivering sleeves that meet the highest standards—because precision matters.
